Mini DIY Tuya ZigBee 3.0 Smart Dimmer Switch Relay Module Tuya ZigBee3.0 Hub Required Smart Life/Tuya App Wireless Remote Control, Works with Alexa Google Home Voice Control 1/2 way 1 Gang

by Moes

Main Features:

1. This smart Tuya ZigBee 3.0 dimmer module is designed with ZigBee 3.0 protocol specially, compatible with Tuya ZigBee hub to realize the whole linkage of your house,a really good substitution for unstable Wi-Fi. ZigBee 3.0 protocol with mini design suits for EU/UK wall switch box ,and easily hide it into your hidden wall switch box of your traditional switch without any influences on your original decoration style to make it smart,giving your devices ultimate power on/off smart makeover and convert most any compatible products to smart ones;traditional switch and this smart module can work independently without interference. (Note:This module is only suitable for reset switch.)

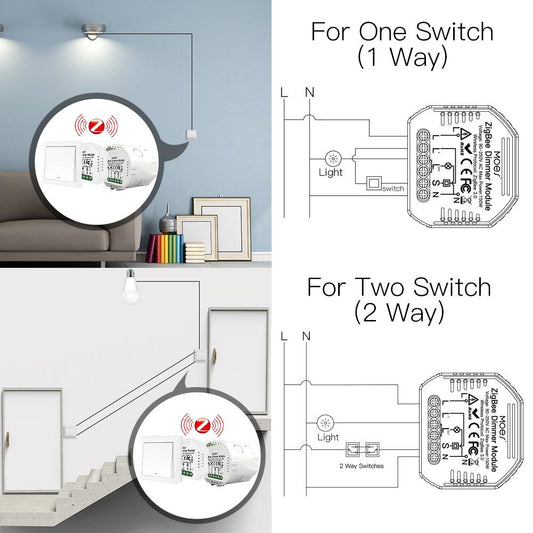

2. 1/2 Way Dimmable: Adjust the brightness via Your Voice or Smart Life App freely.It can not only be used as a 1 way circuit switch,but also 2 way supported(two switches control one light).Simply connect it to one of your two traditional switches,then you are able to convert your connected device into a smart one(for 2 way circuit).Allows for hands-free voice and wireless remote control;support Amazon Alexa Google Home voice control and Smart Life and Tuya App control on smart phones with special Tuya ZigBee 3.0 hub required and connected.
3. Considering the status of unstable network or no network,ZigBee 3.0 switch moduleis really an irreplaceable must to combine with ZigBee gateway to form a home LAN,NO MORE WORRY about no and weak network,easily get control via connected devices as long as there is stable ZigBee signal;Allows for more devices connected via ZigBee than WiFi protocol.
4. Take full control of connected appliances with timers, schedules and countdown (1/5/30 mins, 1 hour, etc.) with Smart Life and Tuya App; share control with family and friends for added convenience.
5. Easy DIY Installation:Simply hide it into wire box with its mini design and wire it to your traditional reset switch for normal use;Add the device to Tuya ZigBee hub to start intelligent controls in Smart Life App;Full 2 Years Warranty,for All Moes Smart devices and 60 Days Refund Guarantee,Your complete satisfaction is Moes’s goal for all its customers.

Specifications:

Product type:ZigBee Dimmer Module

Wireless Protocol:ZigBee 3.0

Max Power:75W 110V / 150W 220V

Voltage:90-250V AC 50/60Hz

Operation temp.:-10ºC - +45ºC

Case temp.Tc: +80ºC (Max.)

Operation range:≤ 200 m

Dims (WxDxH):52x47x18 mm

IP rating:IP20

DIY WiFi Smart 2 Way 2 Gang Light LED Dimmer Module Switch Build your Own Switch Interface Smart Life/Tuya APP Remote Control Work with Alexa Google Home

by Moes

Main Features:

1.Easy replace your traditional dimmer light switch to make it smart,can make your exist 2 way switch smart also,just install 1 DIY smart dimmer switch,suit for EU/UK switch box,please confirm the size before order.(Note:this dimmer switch module can only be used with traditional reset switch.)

2.0%-100% Dimmable: Adjust the Brightness Via Your Voice Assistant like Amazon Alexa Google Home or your mobile phone

3.Wi-fi control via your mobile phone 2.4G Networks provides the needed connection to the DIY Switch Dimmer Module without the need of a separate HUB.

4.Uses popular"Smart life/Tuya"Android / IOs app Versatile APP Allows for Full Control of Your Lights or Compatible Appliances. Multiple Program Options Allow You to Plan the Exact Time to Turn Lights On/Off Automatically.

5.Give your devices the ultimate power on/off smart makeover,Simply Wire this Do-It-Yourself Module between your Device and Power Source to convert most Compatible Products to a Smart one.

Q&A:

1.Q:Does this work with Google Home?

A:Yes,it does.And it's also compatible with Alexa.

2.Q:Do I need to buy a hub to work with the curtain module?

A:No,there is no need for you to buy a hub and no hub required for the module.

3.Q:What should I do if I can't configure the curtain module?

A:a:Please check whether device is powered on.

b:Make sure your mobile and dimmer module are under the same 2.4GHz wifi network.

c:Whether it's in good internet conditions.

d:Make sure the password entered in App is correct.

e:Make sure the wiring is correct.

4.Q:What device can be connected to the wifi dimmer module?

A:All types of lamps,no matter it is fluorescent or LED.

5.Q:What happens if the wifi goes off?

A:You can still control the light connected to the dimmer module with your traditional switch and once wifi is active again the device connected to the module will connect automatically to your wifi network.

6.Q:What should I do if I change the wifi network or change the password?

A:You have to re-connect our wifi dimmer module to the new wifi network accordingly as per the App User Manual.

7.Q:How do I reset the device?

A:Power traditional dimmer off(the one connected to the wifi dimmer module).Then press and hold for 10 seconds or more until the lamp connected to the module will flick and enter into configuration mode.

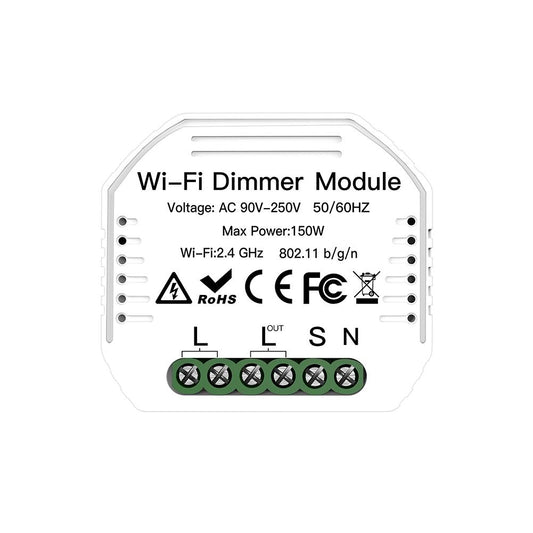

DIY Smart WiFi Light LED Dimmer Switch Smart Life/Tuya APP Remote Control 1/2 Way Switch,Works with Alexa Echo Google Home

by Moes

Note:It's Only Suit For Reset Switch

Main Features:

1.Easy replace your traditional dimmer light switch to make it smart,can make your exist 2 way switch smart also,just install 1 diy smart dimmer switch, suit for EU/UK switch box,please comfirm the size before order.

2.0%-100% Dimmable: Adjust the Brightness Via Your Voice Assistant like Amazon Alexa Google Home or your mobile Phone

3.Wi-fi control via your mobile phone 2.4G Networks provides the needed connection to the DIY Switch Dimmer Module without the need of a separate HUB.

4.Uses popular"smart life/Tuya"android / ios app Versatile APP Allows for Full Control of Your Lights or Compatible Appliances. Multiple Program Options Allow You to Plan the Exact Time to Turn Lights . On/Off Automatically.

5.Give your devices the ultimate power on/off smart makeover,Simply Wire this Do-It-Yourself Module between your Device and Power Source to convert most any Compatible Product to a Smart one.

Atttention: No ralay status function.

Parameter:

Input Voltage : 90V~250V

Wiring : Live wire and Neutral wire

Max. Load Power : 150W(LED)

WiFi Standard : 2.4GHz 802.11 b/g/n

App Name : Tuya Smart/Smart Life

Work Life : 100,000 times for operation

Size :51x47x22mm

Certification: FCC, CE, RoHS

Zigbee 3.0 DIY Smart Dimmer Switch Controller 2MQTT Setup Available Smart Home Automation Device Remote Control Work with Echo Plus Alexa Smartthings Fit for Most of Zigbee3.0 Hub

by Moes

Upgrade Features:

1. Every ZigBee device with heavy current can act as a communication relay for another heavy current ZigBee device like socket,switch,thermostat and so on with the range of 20 -30m,performing as a ZigBee Mesh(ZIGMESH) for highly stable signal network.(Note:This feature is not for light current ZigBee device and also not ZIGMESH functions featured.
2. ZigBee2MQTT setup available for this zigbee device.

Main Features:

1.Smart ZigBee 3.0 Light Dimmer Switch:Compatible with Echo Plus,Smartthings hub and Wink hub.Adjust the Brightness Via Your Voice Assistant or Phone.

2.Remote Control and Smart App Control:Support Smart App Control to remotely control on smart phone.One of the above ZigBee hub is required.

3.Voice Control:Control lights and home appliances through Amazon Alexa to freely voice control your lights,as long as there is stable ZigBee signal.

4.Considering the status of unstable network or no network,ZigBee 3.0 switch is really an irreplaceable must to combine with ZigBee gateway to form a home LAN,NO MORE WORRY about no network.You are able to freely control the appliances and enjoy a much more free lifestyle.

5.Family Sharing:Share the control with your family members or friends.Support multiple phones to control one switch or one phone to control multiple switches at the same time.

Package Listing:

ZigBee 3.0 Smart Switch*1

User Guide*1

Parameter :

ZigBee:IEEE 802.15.4

Input Voltage:AC 85-265V 50/60Hz

Output Voltage:AC 85-265V 50/60Hz

Maximum Load:250V/10A

Wireless Protocol:ZigBee 3.0

Wire Diameter:20-12

AWG Stripe Length:8-10mm

Q&A :

1. Q:Is it compatible with Google Home?

A:Yes,what you need to do is to connect your Google home to SmartThings or other hubs,and then you are able to control via Google Home,as well as Alexa.

2.Q:Do I need a hub to work with the switch?

A:Yes,zigbee hub is a must for the switch to work normally.ZigBee 3.0 switch supports smartthings hub,Echo Plus hub and Wink hub.

3.Q:Can the controller work with WiFi? A:No,it only supports ZigBee protocol.No WiFi supported.
