RF433 Self Powered Wall Panel Transmitter, Rocker Push Button Switch,2 way /3 way /4 way Multi-Control
1.Wireless Remote Control:Control your electrical applications with the wall panel transmitter within the range required.

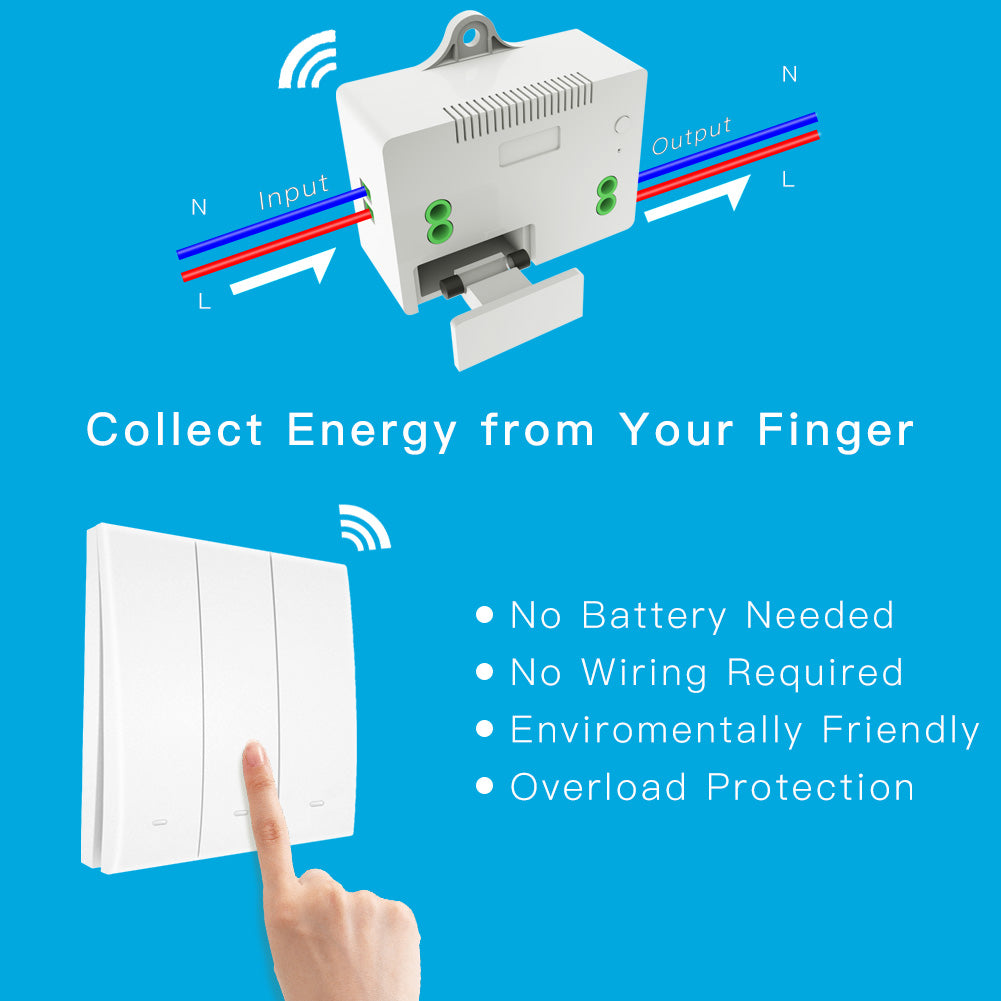

2.No Wi-Fi/Battery to Control:With the self power generation feature of the Wall Panel Remote Transmitter Switch,you are able to remotely control the devices connected to the RF433 Relay Receivers without WiFi or battery,as long as match the switch to the receiver in advance.Also,the rocker push button enables a lot convenience to your smart life.
3.Multi-Functinal Switch:One Wall Panel Remote Transmitter Switch is able to control multiple RF433 Relay Receivers,and multiple Wall Panel Remote Transmitter Switches can also control one RF Relay Receivers at the same time.Stick the switch with the double-sided tape include.
4.Customer Protection:60 days refund guarantee and return for any reasons within 15 days.ce,CCC ,RoHS Listed. 5.Attention:The RF433 Relay Receiver and the Wall Panel Remote Transmitter Switch must be used together with the same type,so you can't buy one receiver or one switch alone,or use the self generating wall panel transmitter to connect with other type of receiver.
Notice:The package Included different products because you choose a different options.(Either a 1Gang or 2Gang is optional, combined with the receiver you must buy to use together.)
Technical Data Of Wall Panel Transmitter:
Operating Frequency: 433MHz.
Material: HDPE(Type2) Plastic.
Coding Specification: 1527.
Distance: Indoor (20 Meters/65 Feets) , Outdoor (80 Meters/262 Feets).
Color: White , Silver, Gold, Black.
Size(L/W/H): 86mm x 86mm x 13mm.
Technical Data Of Receiver:
Model Number: KR2201-4.
Encoding Type: Intelligent Learning Code.
RF Working Mode: Superheterodyne Reception.
Modulation Mode: ASK.
RF Frequency: 433MHz.
Working Mode: Momentary, Toggle and Latching.
Input Voltage: AC 85V~250V.
Quiescent Current: 5mA.
Receiving Sensitivity: >97dbm.
Remote Control Range: >50m (Free Space).
Wired Connection Way: Fixed Wiring Pillar.
Output Terminal: NO,COM,NC. NO: Normal Open(Output). COM: Common(Output). NC: Normal Close(Output).
Color: Green(PCB Board), Black (Outside Shell).
Package Size: 8.1 * 3.6 * 2.0cm / 3.1 * 1.2 * 0.78in.
Package Weight: 40g /1.41oz.
1.Q：Do I need to control the devices with battery ?
A: Certainly no need.This is a kind of switch with the self-generating feature.A battery is not required.
2. Q:Can a 2 Gang Wall Panel Transmitter Switch control two different devices connected to the receivers in different places?
A:Yes,a 2 Gang switch can control different devices apart,like one is upstairs,and another is downstairs.
3.Q:Do I need to make a hole to install the switch?
A:No, there is no need.You just need a double-sided tape to stick it anywhere you like.And we will provide you with 2 double-sided tapes in the package.
4.Q:Does this work with Google Home?
A：Yes,it does.And it’s also compatible with Alexa
5.Q:How to install?Is a c-wire required for the switch?
A:Install the receiver where the device requires,and then control the device through our switch.No c-wire required for the switch.
