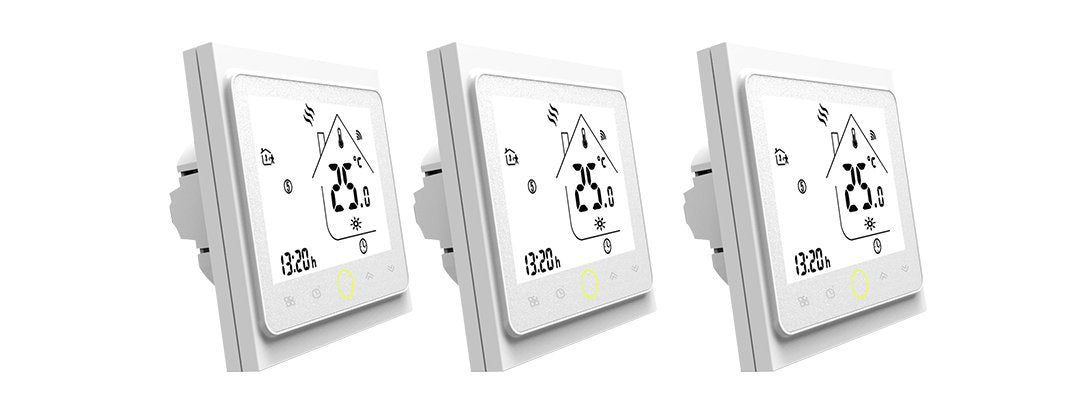

Installation of Smart WiFi Thermostat

Installation of Smart WiFi Thermostat

Note:Your thermostat is suitable for installation within a standard 86mm pattress box or European 60mm pattress box.

Step 1. Keep power off. See Fig 1.

Step 2.Remove the mounting plate by rotating the LCD part.See Fig 2.

Step 3. Connect power supply, load into the appropriate terminals.

(see “Wiring your thermostat” for details and Fig 3).

Step 4. Fix the mounting plate into the wall with screws in the box.See Fig 4.

Step 5. Fasten the body of the thermostat and mounting plate by rotating.See Fig 5.

Step 6. Installation complete.See Fig 6.
